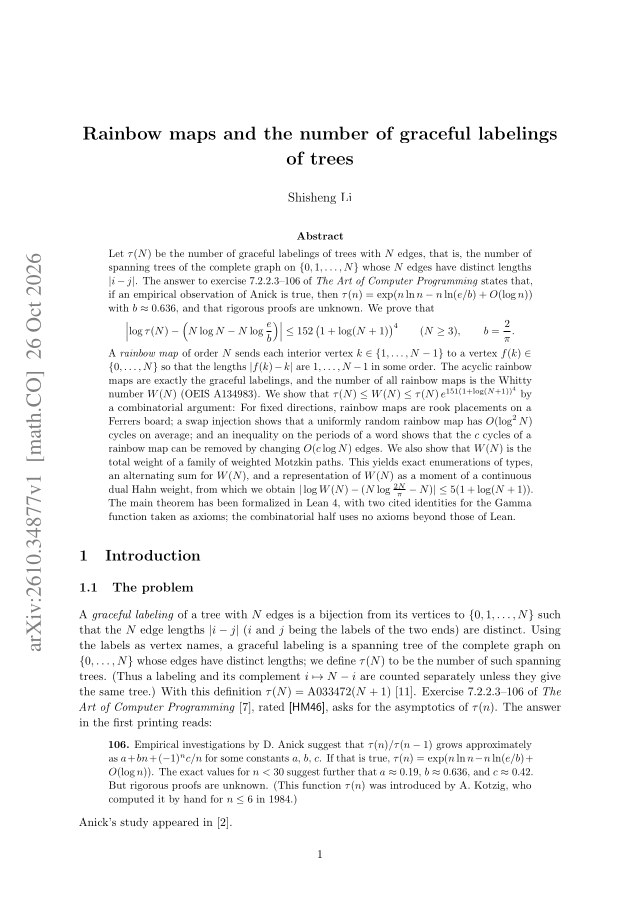

Rainbow maps and the number of graceful labelings of trees
Shisheng Li
math.CO
Oct 26, 2026 · v1
TL;DR
The main asymptotic theorem is formalized in Lean 4 with Mathlib, provided as ancillary files. The combinatorial half is axiom-free and two Gamma-function identities are taken as axioms.
Abstract
Let $τ(N)$ be the number of graceful labelings of trees with $N$ edges, that is, the number of spanning trees of the complete graph on $\{0,1,\dots,N\}$ whose edges have distinct lengths. The answer to exercise 7.2.2.3-106 of The Art of Computer Programming states that, if an empirical observation of Anick is true, then $τ(n)=\exp(n\ln n-n\ln(e/b)+O(\log n))$ with $b\approx0.636$, and that rigorous proofs are unknown. We prove that $|\logτ(N)-(N\log N-N\log(e/b))|\le152(1+\log(N+1))^4$ for every $N\ge3$, with $b=2/π$. A rainbow map of order $N$ sends each vertex $k\in\{1,\dots,N-1\}$ to a vertex $f(k)\in\{0,\dots,N\}$ so that the lengths $|f(k)-k|$ are $1,\dots,N-1$ in some order. Acyclic rainbow maps are exactly the graceful labelings, and all rainbow maps are counted by the Whitty numbers $W(N)$ (OEIS A134983). We show that $τ(N)\le W(N)\leτ(N)e^{151(1+\log(N+1))^4}$ by a combinatorial argument: for fixed directions, rainbow maps are rook placements on a Ferrers board; a swap injection shows that a uniformly random rainbow map has $O(\log^2N)$ cycles on average; and an inequality on the periods of a word shows that the $c$ cycles of a rainbow map can be removed by changing $O(c\log N)$ edges. We also show that $W(N)$ is the total weight of a family of weighted Motzkin paths. This yields exact enumerations, an alternating sum for $W(N)$, and a representation of $W(N)$ as a moment of a continuous dual Hahn weight, from which $|\log W(N)-(N\log(2N/π)-N)|\le5(1+\log(N+1))$. The main theorem has been formalized in Lean 4; its combinatorial half uses no axioms beyond those of Lean.
Problem
Knuth's TAOCP exercise 7.2.2.3-106 asks for the asymptotics of τ(N), the number of graceful labelings of trees with N edges. An empirical prediction exists, but no rigorous proof was known.
Approach
Graceful labelings are compared with rainbow maps, which are counted by the Whitty numbers W(N). A swap injection shows that a random rainbow map has O(log² N) cycles on average. An exchange argument then removes the cycles by changing O(c log N) edges. W(N) is also expressed as the total weight of weighted Motzkin paths and as a moment of a continuous dual Hahn weight, which gives sharp estimates.
Results
For N ≥ 3, |log τ(N) − (N log N − N log(e/b))| ≤ 152(1+log(N+1))⁴ with b = 2/π, confirming Anick's constant b ≈ 0.636. The main theorem is formalized in Lean 4 with Mathlib.
| N | τ(N) | W(N) | τ(N)/W(N) |
|---|
| 6 | 164 | 168 | 0.9762 |
| 10 | 155632 | 171168 | 0.9092 |
| 15 | 6502948232 | 7697178880 | 0.8448 |
| 20 | 1366258578159064 | 1714108476337152 | 0.7971 |
Graceful labelings τ(N) versus Whitty numbers W(N)
